Reid

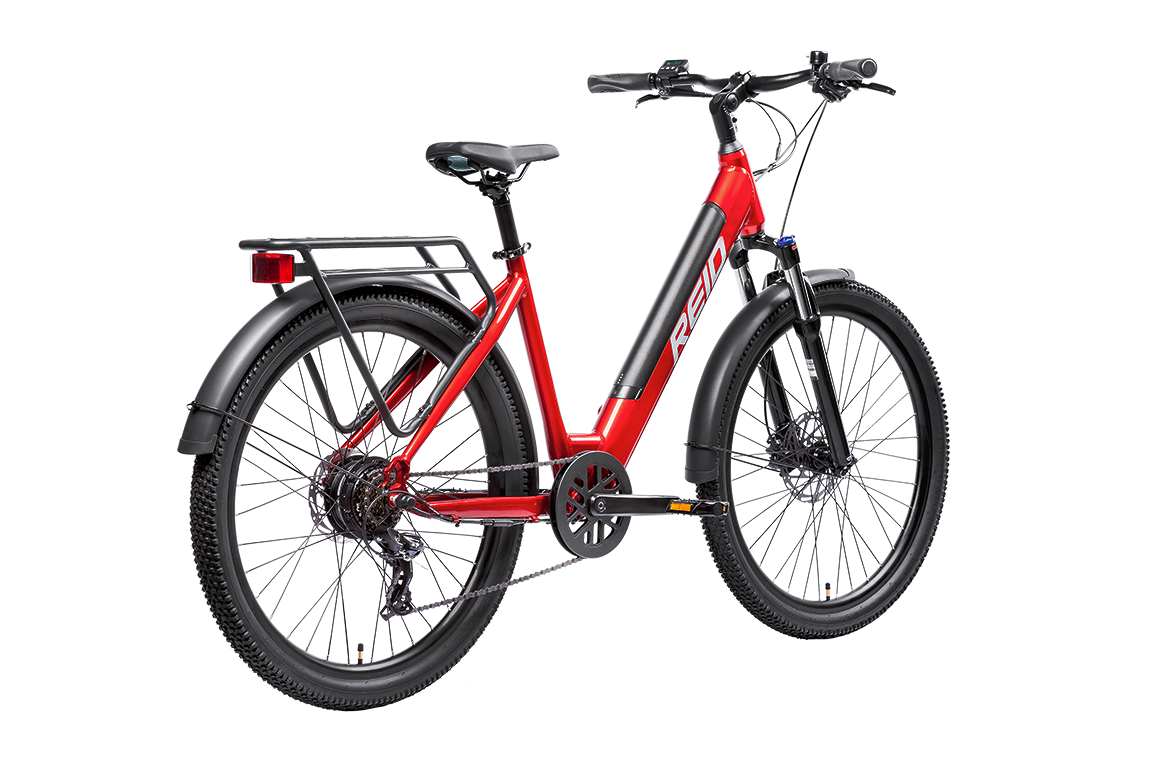

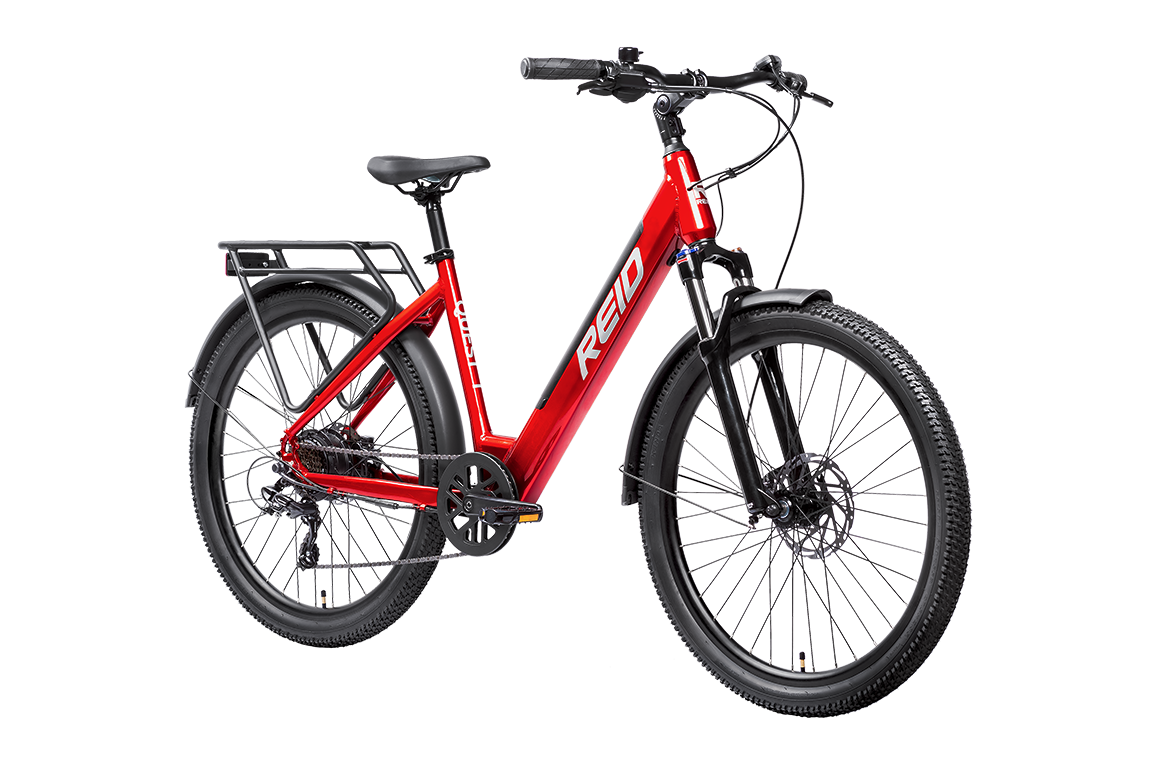

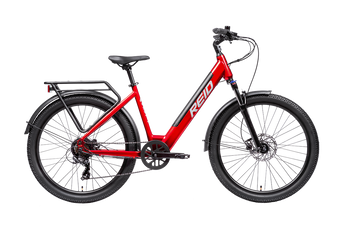

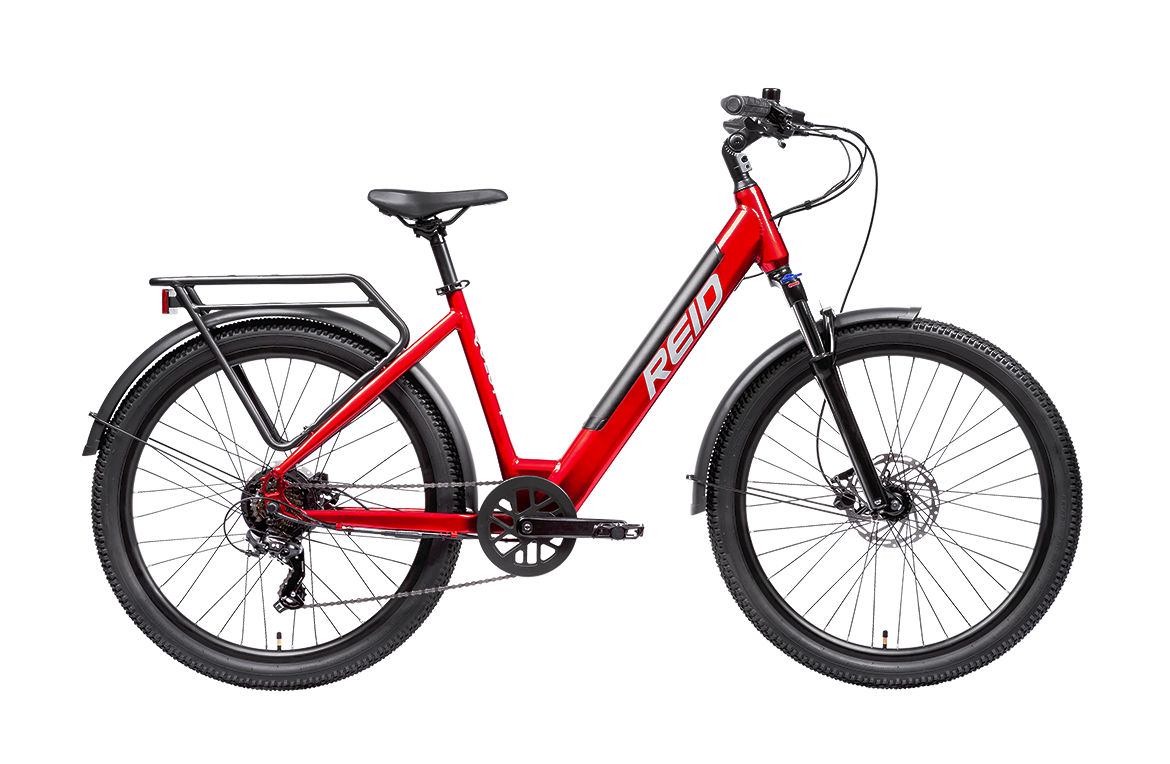

Quest 1 ST 500W eBike Red
Embark on new adventures with the Quest 1 eBike, designed for versatile performance whether you're commuting, cruising, or exploring light trails. Its 6061 alloy frame features internal cable routing and an integrated 48V 14ah 672Wh battery, offering a sleek look and balanced weight distribution for a comfortable ride. The 80mm suspension fork smooths out bumps, enhancing comfort on varied surfaces.
Experience smooth electric assistance from the 500W rear hub motor, providing a steady boost to your pedaling. All your essential ride data is clearly displayed on the Ananda D19 handlebar-mounted display with bluetooth technology and app compatibility. Gear changes are managed with an easy to use L-TWOO 7-speed trigger shifter paired with a Shimano rear derailleur and 14-28T freewheel, offering straightforward shifting that is ready for a wide variety of terrain.
Stopping is simple and controlled thanks to Tektro hydraulic disc brakes offering powerful braking in all conditions. Rolling on quality Kenda 27.5x2.35" tyres, the Quest 1 provides excellent stability, traction, and comfort wherever your riding takes you. The alloy riser bars (700mm) and an adjustable A-head 80mm stem allow for a customisable and comfortable riding posture. A plush comfort plus saddle and ergo rubber grips complete the package, ensuring every journey is a pleasant one.
Please make sure to familiarise yourself with eBike and eScooter safety information before charging or using your new Reid. You can view and download user manuals and safety instructions here.
Specifications
Build
| Frame | 6061 alloy with internal cable routing and integrated battery |
|---|---|
| Fork | Uding D5 80mm travel with lockout, QR axle |
Electric
| Motor | Ananda R520 48V 500W (768W peak power) rear hub motor, 65nm |
|---|---|
| Battery | Downtube integrated 48V 14Ah 672Wh battery |
| Range | Up to approx 60 miles / 97km dependant on terrain and riding style |
| Max Speed | 20mph / 32km/h |
| eBike Class | Class 2 |
| Throttle | 300X speed lever with up to 20mph assistance |
| Display | Ananda DF229 colour display with Bluetooth connectivity via Ananda app |
| Battery Certification | UL2271 |
Drivetrain
| Shifters | LTWOO A2 7 speed shifter |
|---|---|
| Rear Derailleur | Shimano TY300 7 speed derailleur |
| Chainset | Prowheel alloy 42T 170mm |
| Cassette / Freewheel | Shimano 7 speed freewheel 14-28T |
| Chain | KMC Z7 7 speed chain |
| Bottom Bracket | Sealed square taper |
| Brakes | Tektro HD-E3120 hydraulic disc brake with motor cut-off, 180mm rotors |
Wheels
| Rims | 27.5 double wall alloy, 36H |
|---|---|
| Hubs | Alloy quick release front, rear hub motor |
| Tyres | Kenda K1153 27.5x2.35" |
Cockpit

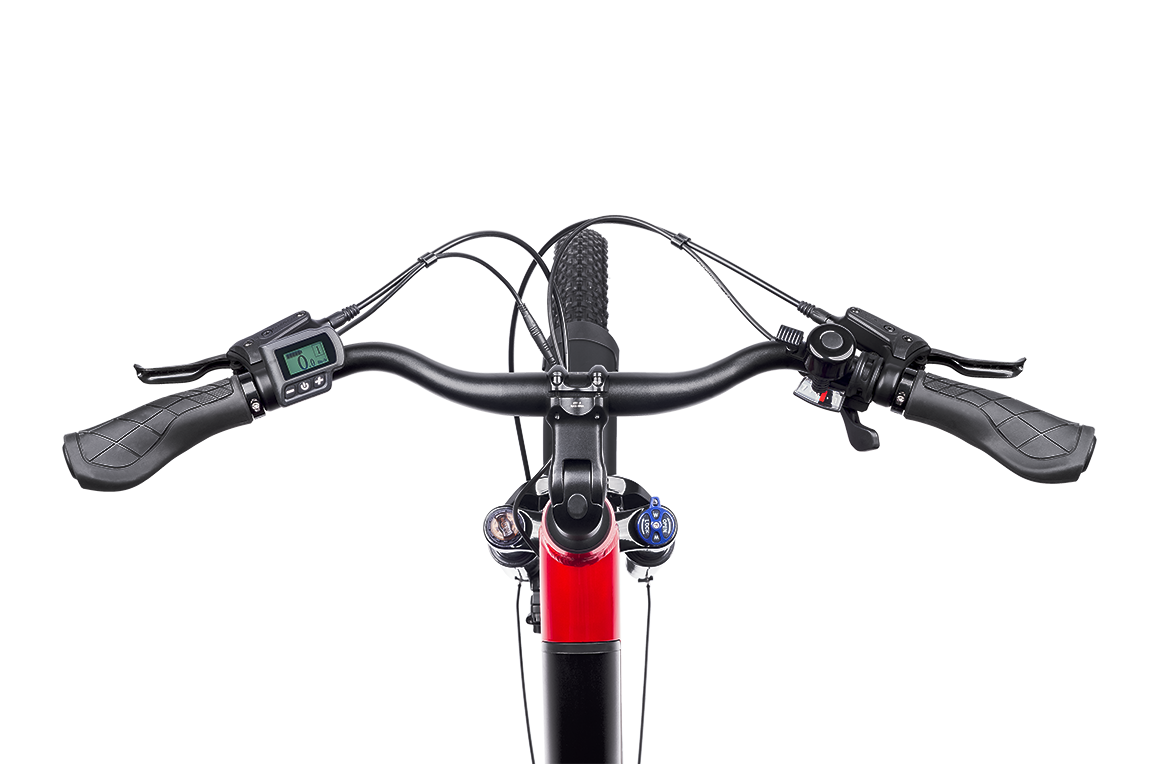

| Handlebar | Alloy riser bar 700mm wide, 25mm rise, 31.8mm clamp |
|---|---|
| Stem | Alloy A head adjustable stem, 80mm length, 31.8mm clamp |
| Headset | Semi integrated headset |
| Grips | Ergo comfort lock-on grips |
| Saddle | Comfort Plus saddle |
| Seatpost | Alloy 30.9mm 350mm length |
| Seatpost Clamp | Alloy quick release 34.9mm |
| Pedals | Alloy platform pedals |
Accessories
| Rear Rack | Custom rear rack, max capacity 59lbs / 27kg |
|---|---|
| Mudguards | Front and rear mudguards |
| Kickstand | Alloy kickstand |
| Front Light | LED front light |
| Rear Light | LED rear light |
Weight & Payload
| Bike Weight | Approx 51lbs / 23kg |
|---|---|
| Max Payload | 302lbs / 137kg |
Size Guide
Recommended rider height:
| S - 42cm | 157–168 cm (5'2"–5'6") |
|---|---|
| M - 47cm | 168–178 cm (5'6"–5'10") |
| L - 52cm | 178–188 cm (5'10"–6'2") |
